Geheime schimmel: | - Nee. | Productstatus: | Voorraad |
---|---|---|---|
Type: | Deeltjes | Bewerker Hoofdfrequentie: | 2.0GHz |
Processortype: | Intel xeon | Haven: | Shenzhen Tianjin Xiamen Guangzhou |

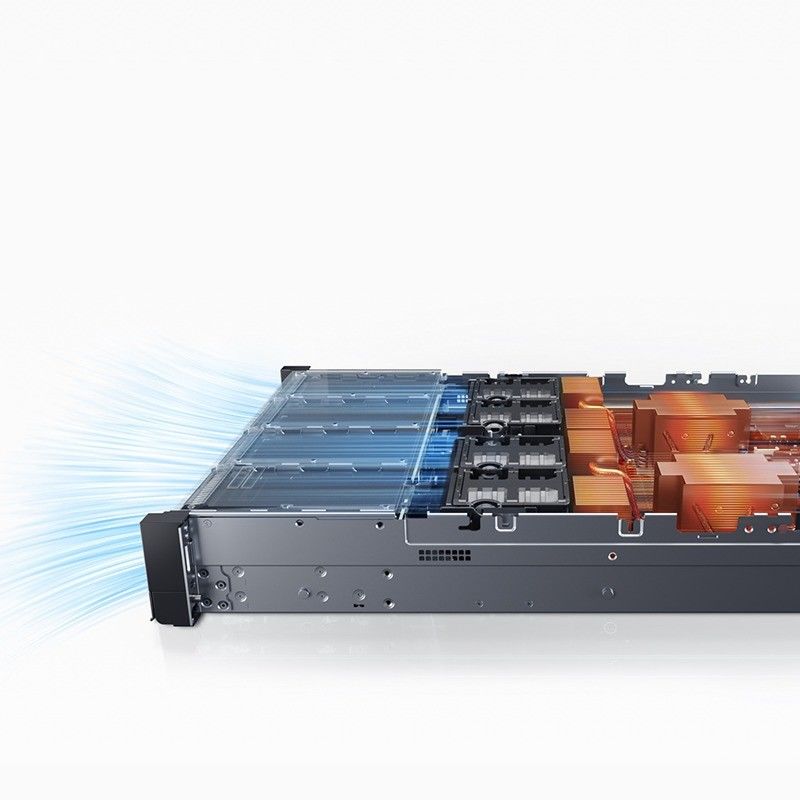

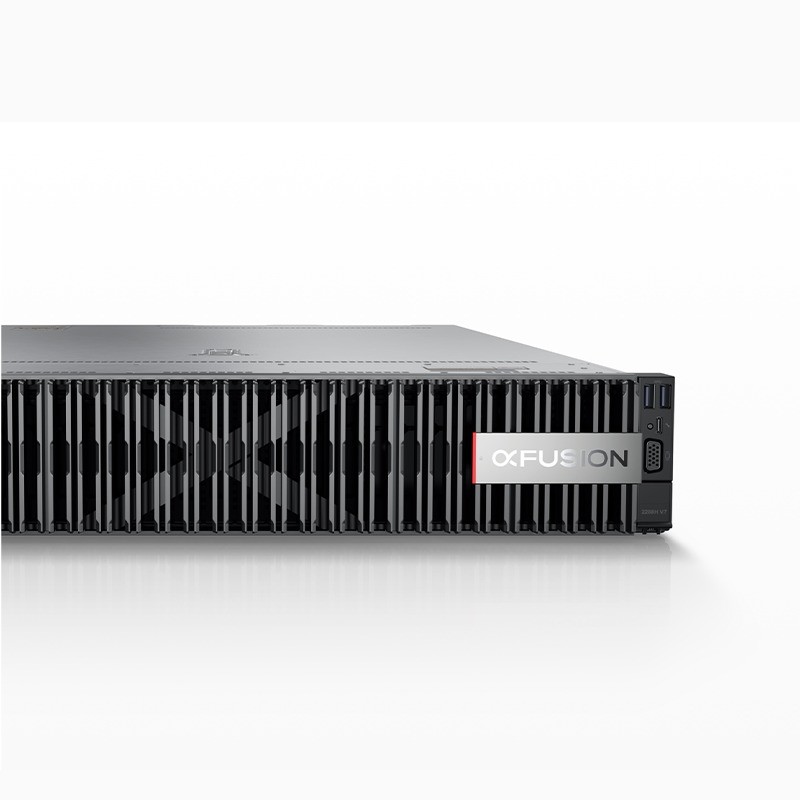

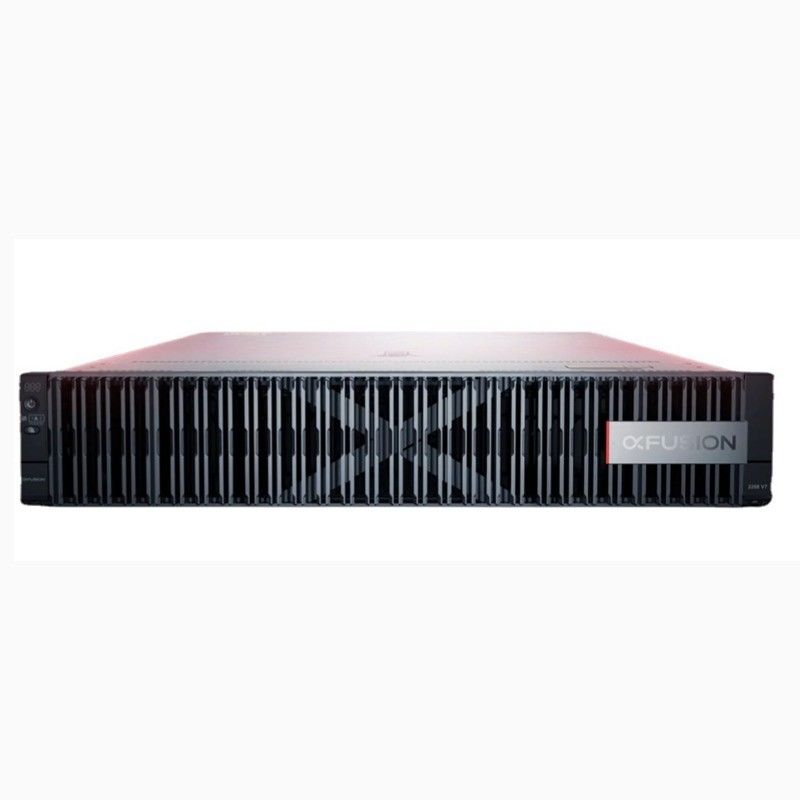

Artikel 1 | Huawei Xfusion Servers 2288H V7 Computer Win Server 2022 Standaard GPU 2U Rackmount Server Chassis |
Merken | Xfusion servers |
Type | 2U Dual Socket Rack Server |
Verwerker | 1 of 2 x 4de generatie Intel Xeon Scalable processors (Sapphire Rapids) met een TDP tot 350 W per processor |
Geheugen | 32 DDR5 DIMM's met een snelheid tot 4800 MT/s. Ondersteunt geheugen uitbreiding via CXL met maximaal 16 x DDR5 of DDR4 DIMM-slots; maximaal 48 x DIMM-slots |
Storage Controllers | RAID 0, 1, 10, 1E, 5, 50, 6 of 60; optionele supercapacitor voor cache-gegevensbeveiliging tegen stroomonderbreking, migratie op RAID-niveau, roaming van de schijf, zelfdiagnoses en op afstand op het web gebaseerde configuratie. |

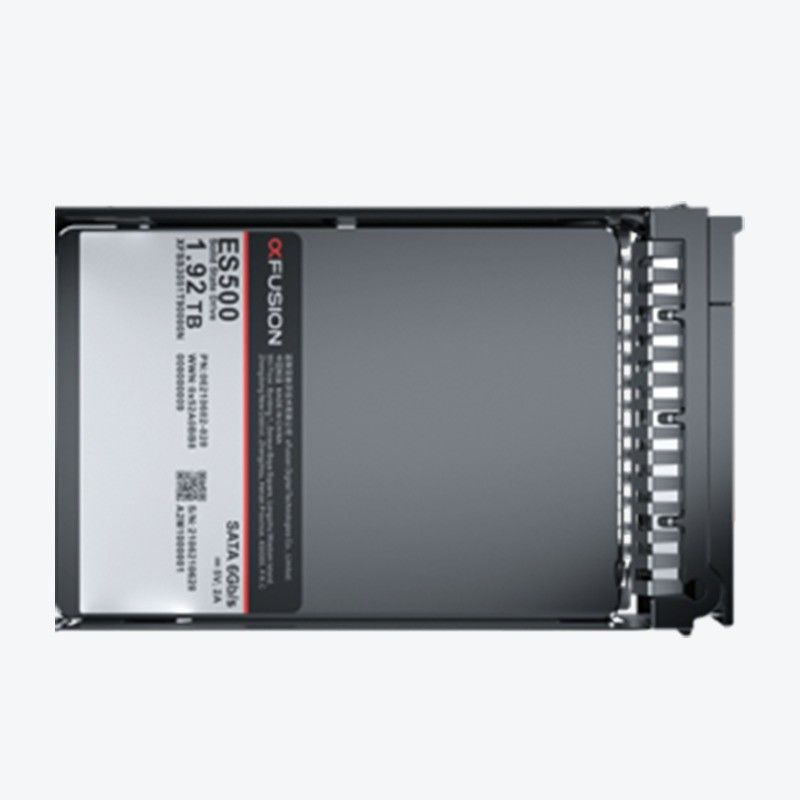

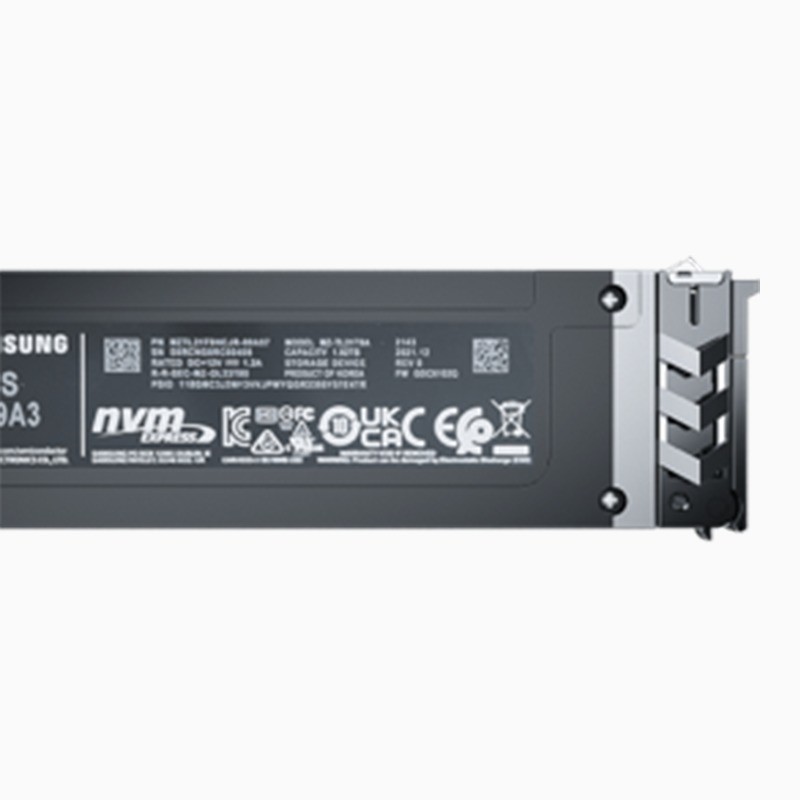

Vervoerruimtes | Er is ondersteuning voor warmwisselbare schijven met de volgende configuratiemogelijkheden: • 8 tot 31 x 2,5" SAS/SATA/SSD-stations • 12 tot 20 x 3,5" SAS/SATA-stations • 4/8/16/24 x NVMe SSD's • SSD's van 36 x E1 of 48 x E3 • maximaal 45 x 2,5" schijven of 34 x volledige NVMe SSD's • 2 x M.2 SSDs |
Stroomvoorziening | 2 x hot-swappable PSU's in 1+1 redundantie-modus. Ondersteunde opties omvatten: • 900 W AC Platinum/Titanium PSU's (input: 100 V tot 240 V AC, of 192 V tot 288 V DC) • 1500 W wisselstroomplatina-koppelingen 1000 W (invoer: 100 V tot 127 V wisselstroom) 1500 W (input: 200 V tot 240 V wisselstroom of 192 V tot 288 V gelijkstroom) • 1500 W 380 V HVDC-stroomverbruikers (invoer: 260 V tot 400 V gelijkstroom) • 1200 W ¥48 V tot ¥60 V gelijkstroomvoorziening (invoer: ¥38,4 V tot ¥72 V gelijkstroom) • 3000 W wisselstroom Titanium PSU's 2500 W (input: 200 V tot 220 V wisselstroom) 2900 W (input: 220 V tot 230 V wisselstroom) 3000 W (input: 230 tot 240 V wisselstroom) • 2000 W wisselstroomplatina-spanning 1800 W (input: 200 V tot 220 V wisselstroom, of 192 V tot 200 V gelijkstroom) 2000 W (input: 220 V tot 240 V wisselstroom of 200 V tot 288 V gelijkstroom) |
