Geheime schimmel: | - Nee. | Productstatus: | Voorraad |
---|---|---|---|
Type: | Deeltjes | Bewerker Hoofdfrequentie: | 2.8GHz |
Processortype: | Intel xeon | Haven: | Tianjin Port, Shanghai Port, Shenzhen Port, Ghuangzhou Port, Dalian Port |

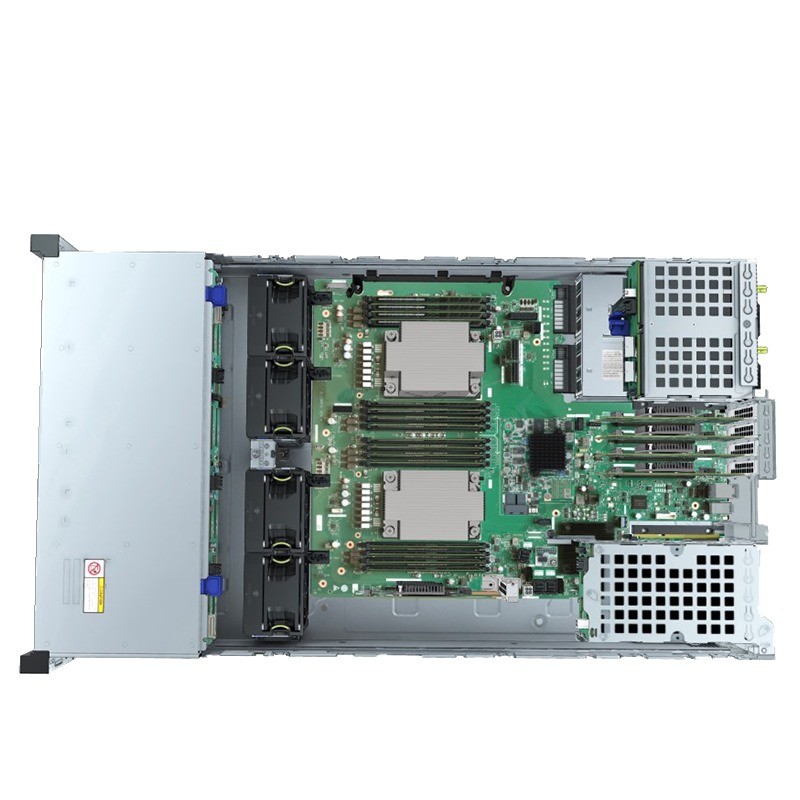

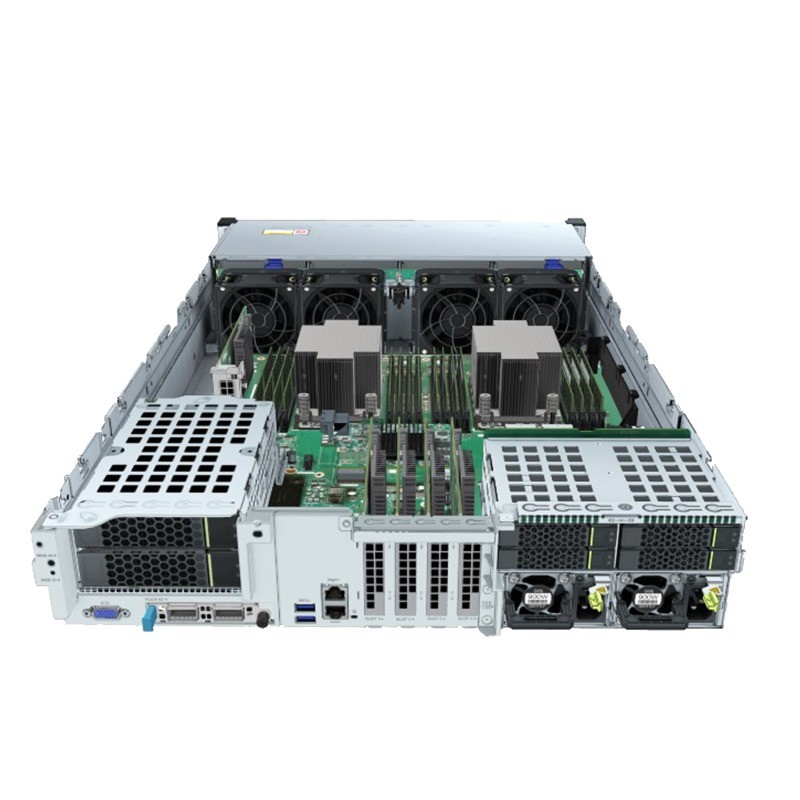

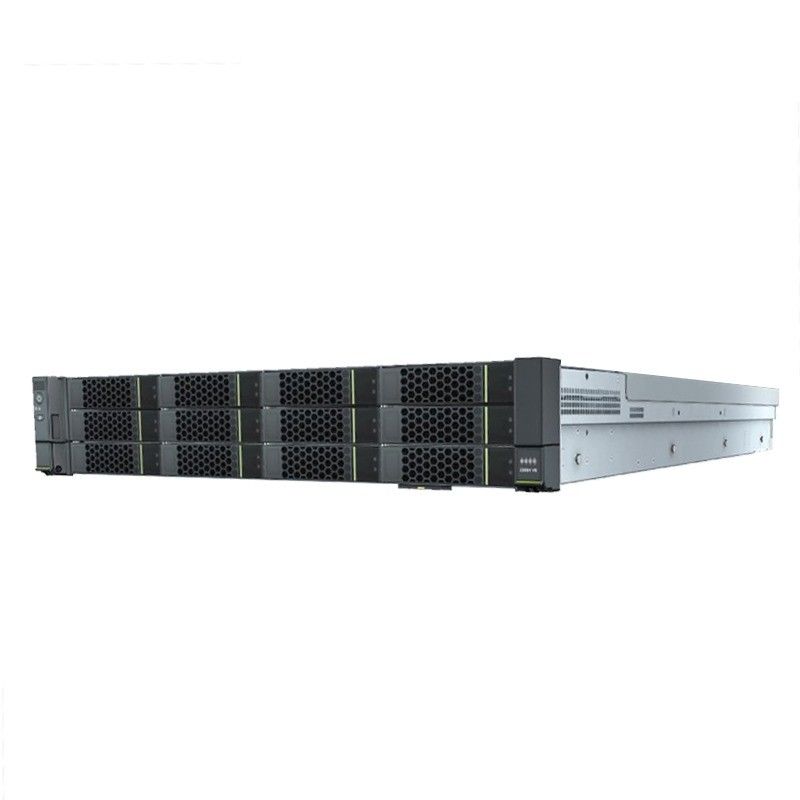

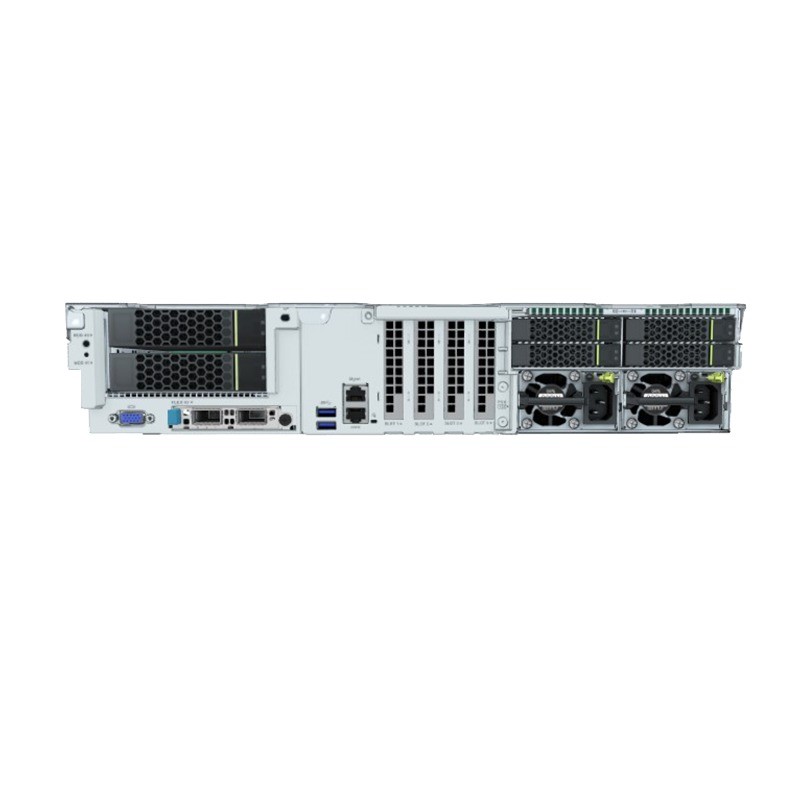

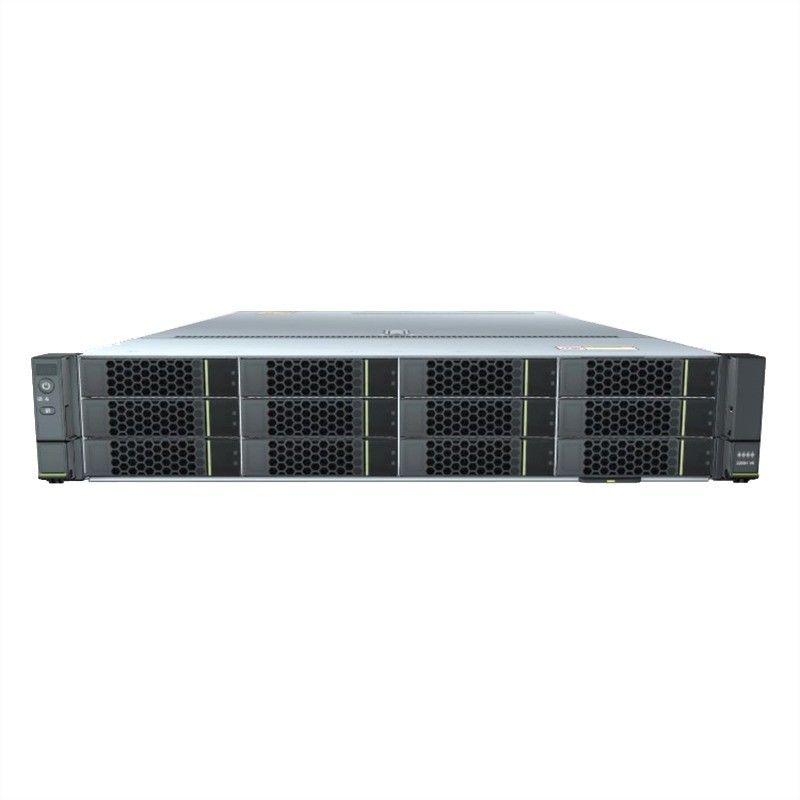

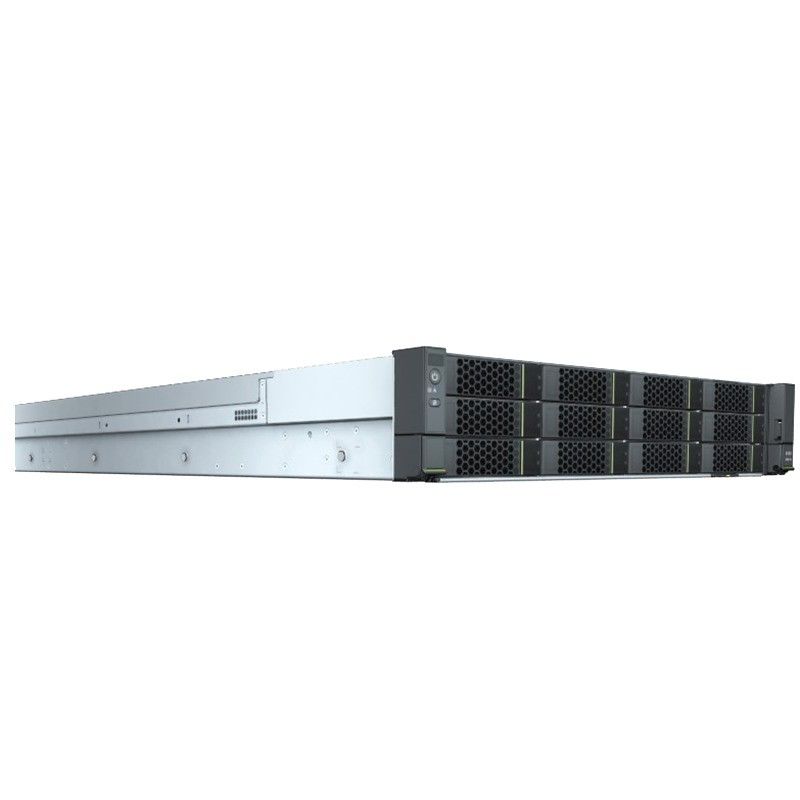

Artikel 1 | Huawei Server 2288H V6 Win Server 2019 Standaard Computer Xeon Gold Smart Media GPU Server Rack 2U |
Merken | Huawei XFusion |
Type | 2U Dual Socket Rack Server |
Verwerker | Tot twee 3e generatie Intel Xeon Scalable Ice Lake-processors (8300/6300/5300/4300-serie), TDP tot 270 W |
Geheugen | 16/32 DDR4 DIMMss, tot 3.200 MT/s; 16 OptaneTM PMem 200 serie, tot 3.200 MT/s. |
Storage Controllers | Ondersteunt RAID 0, 1, 10, 5, 50, 6 of 60, optionele supercapacitor voor cache-gegevensvoorziening tegen stroomonderbreking, migratie op RAID-niveau, roaming op de schijf, zelfdiagnoses en op afstand op het web gebaseerde configuratie. |
Vervoerruimtes | Ondersteunt verschillende aandrijvingsconfiguraties en warm wisselbaar: • 8-31 x 2,5 inch SAS/SATA/SSD-stations • 12-20 x 3,5 inch SAS/SATA schijven • 4/8/16/24 NVMe SSD's • 45 x 2,5 inch schijven of 34 full-NVMe SSD's Ondersteunt flashopslag: • Dual M.2 SSDs |
Stroomvoorziening | Twee warmwisselbare PSU's in 1+1 redundantie-modus. Ondersteunde opties zijn: • 900 W AC Platinum/Titanium PSU's (input: 100 V tot 240 V AC, of 192 V tot 288 V DC) • 1500 W wisselstroomplatina-koppelingen 1000 W (invoer: 100 V tot 127 V wisselstroom) 1500 W (input: 200 V tot 240 V wisselstroom of 192 V tot 288 V gelijkstroom) • 1500 W 380 V HVDC-stroomverbruikers (invoer: 260 V tot 400 V gelijkstroom) • 1200 W -48 V tot en met -60 V gelijkstroomvoorzieningen (invoer: -38,4 V tot en met -72 V gelijkstroom) • 3000 W wisselstroom Titanium PSU's 2500 W (input: 200 V tot 220 V wisselstroom) 2900 W (input: 220 V tot 230 V wisselstroom) 3000 W (input: 230 V tot 240 V wisselstroom) • 2000 W wisselstroomplatina-koppelingen 1800 W (input: 200 V tot 220 V wisselstroom, of 192 V tot 200 V gelijkstroom) 2000 W (input: 220 V tot 240 V wisselstroom of 200 V tot 288 V gelijkstroom) |
