Geheime schimmel: | - Nee. | Productstatus: | Voorraad |
---|---|---|---|
Type: | Deeltjes | Hoofdfrequentie van de processor: | 2.0GHz |
Processortype: | Intel xeon | Haven: | Tianjin. |
Posten
|

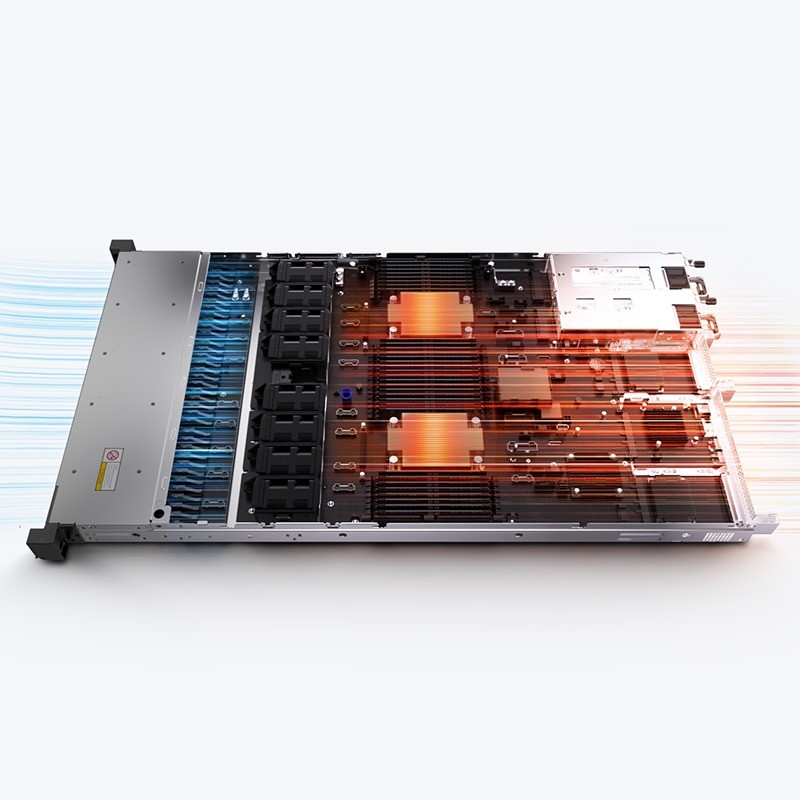

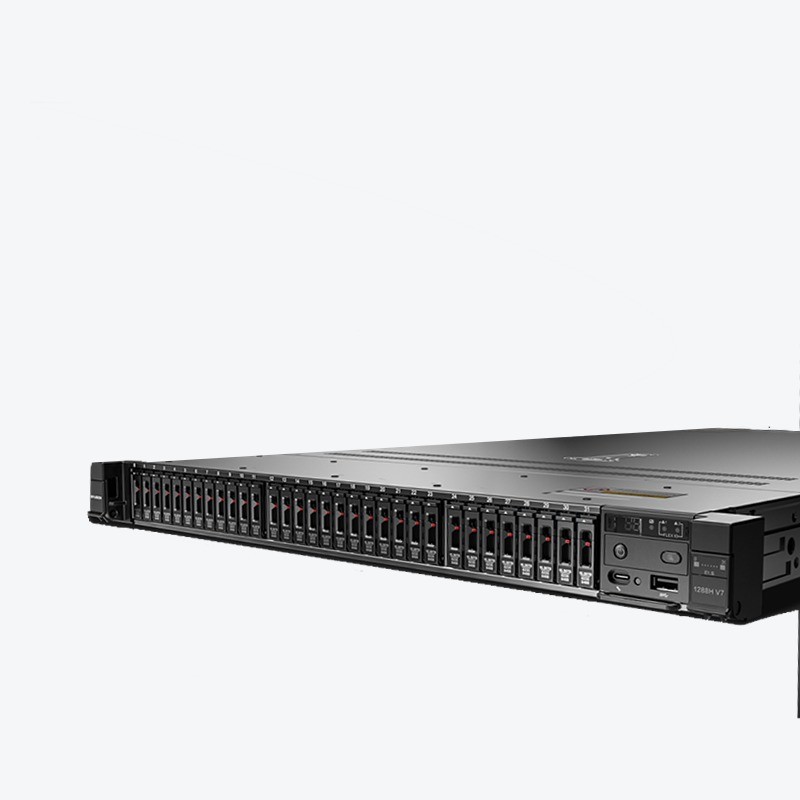

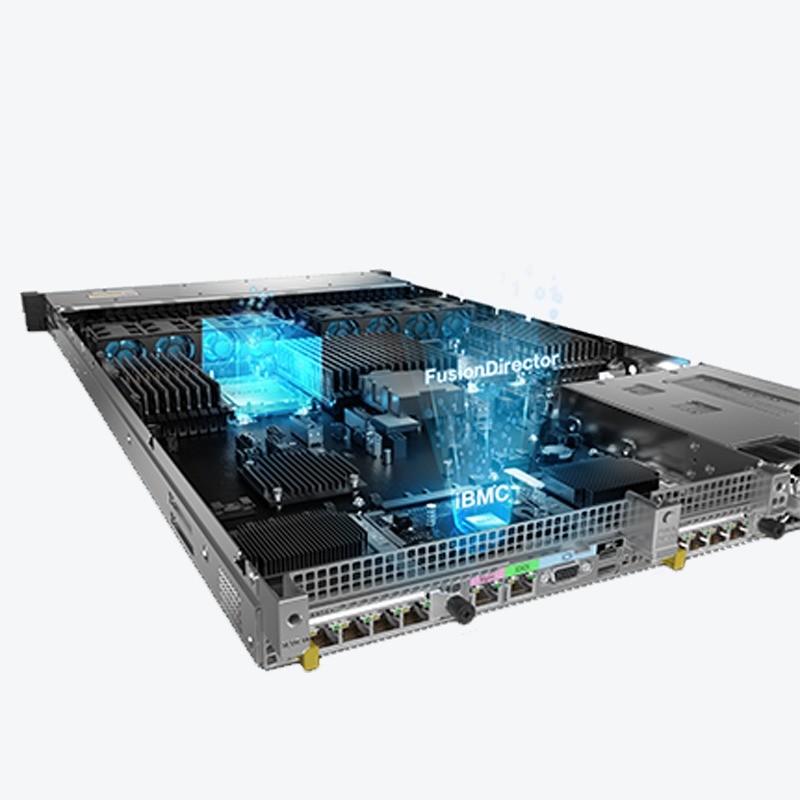

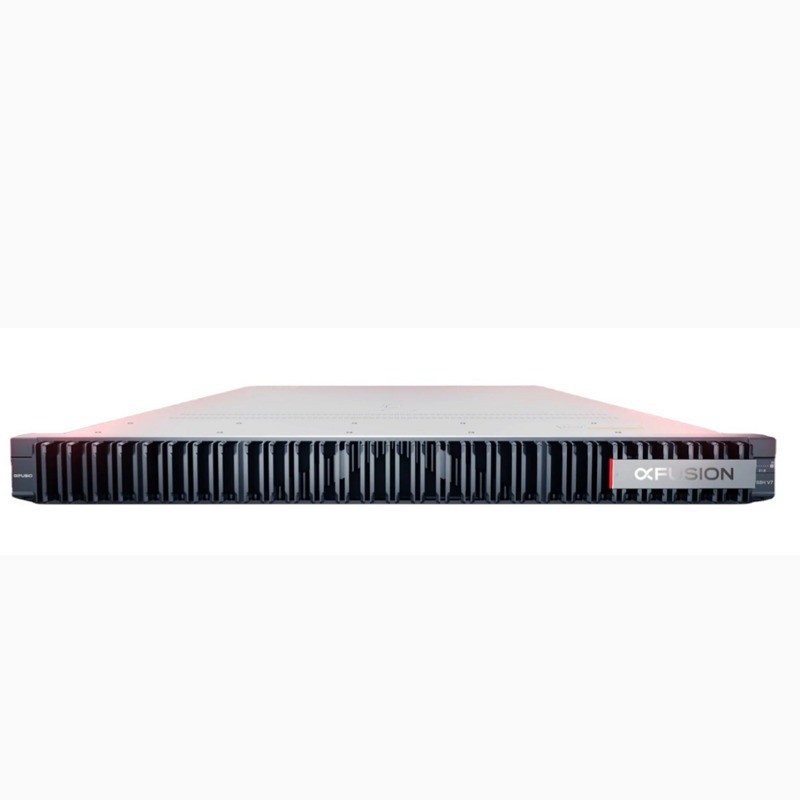

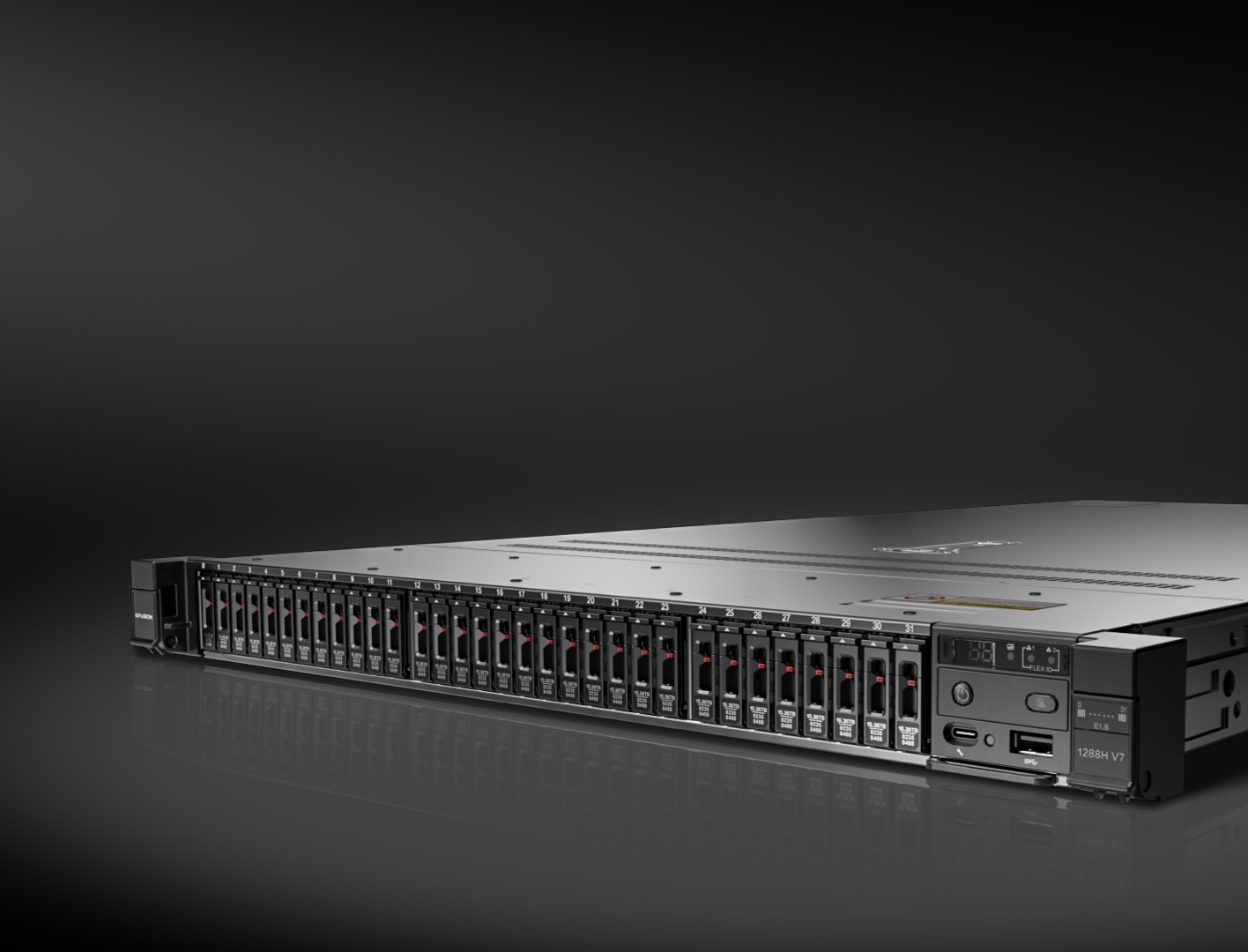

Nieuwe generatie Huawei Server 1288H V7 SQL Win server 2022 standaard Dual Xeon Gold 1U Rack Server
|
Merken
|
XFusion
|
Type
|
1U Dual Socket Rack Server
|
Verwerker
|
1 of 2 x 4de generatie Intel® Xeon® Scalable processors (Sapphire Rapids) met een TDP tot 350 W per processor
|
Geheugen
|
32 x DDR5 DIMM's, met een snelheid tot 4800 MT/s
|
Storage Controllers
|
Biedt RAID 0, 1, 10, 1E, 5, 50, 6, 60; ondersteunt optionele supercapacitor voor cache data stroomstoring
bescherming, migratie op RAID-niveau, drive-roaming, zelfdiagnose en op afstand op het web gebaseerde configuratie. |
Vervoerruimtes
|
Ondersteunt hot-swappable schijven in de volgende configuraties:
• 10 x 2,5" schijven (6 ‰ 10 NVMe SSD's en 0 ‰ 4 SAS/SATA schijven, met een totaal aantal van 10 of minder) • 10 x 2,5" SAS/SATA-stations/SSD's (2 ′′ 4 NVMe-SSD's en 6 ′′ 8 SAS/SATA-stations, met een totaal aantal van 10 of minder) • 10 x 2,5" SAS/SATA schijven/SSD's • 8 x 2,5" SAS/SATA schijven/SSD's • 4 x 3,5" SAS/SATA schijven/SSD's • 32 x E1 SSD's • 20 x E3's SSD's* • 2 x M.2 SSDs |

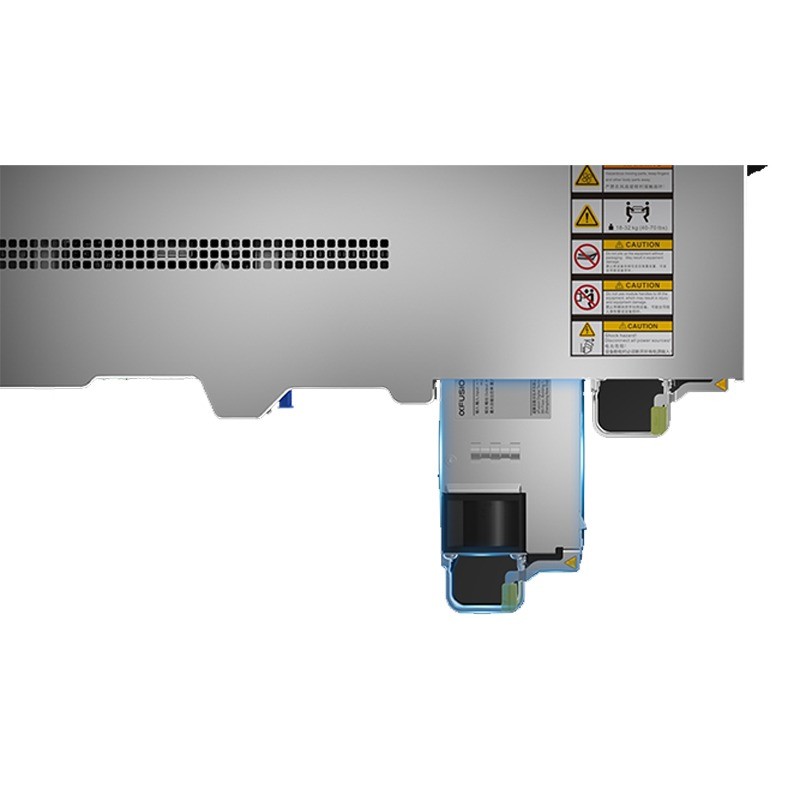

Stroomvoorziening
|
2 x hot-swappable PSU's in 1+1 redundantie-modus. Ondersteunde opties omvatten:
• 900 W AC Platinum/Titanium PSU's (input: 100 V tot 240 V AC, of 192 V tot 288 V DC) • 1500 W wisselstroomplatina-koppelingen • 1000 W (input: 100 V tot 127 V AC) • 1500 W (input: 200 V tot 240 V AC, of 192 V tot 288 V DC) • 1500 W 380 V HVDC-stroomverbruikers (invoer: 260 V tot 400 V gelijkstroom) • 1200 W ¥48 V tot ¥60 V gelijkstroomvoorziening (invoer: ¥38,4 V tot ¥72 V gelijkstroom) • 2000 W wisselstroomplatina-koppelingen • 1800 W (input: 200 V tot 220 V AC of 192 V tot 200 V DC) • 2000 W (input: 220 V tot 240 V wisselstroom of 200 V tot 288 V gelijkstroom) |
